Factory Lead Time

7 Weeks

Mounting Type

Surface Mount

Package / Case

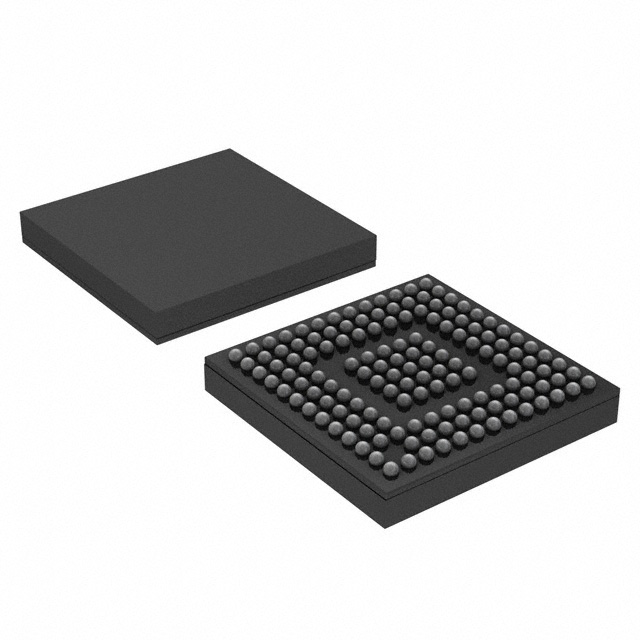

144-WFBGA

Surface Mount

YES

Number of Pins

144

Data Converters

A/D 5x10b

Memory Types

External Program Memory

Number of I/Os

116

ROM(word)

32768

Operating Temperature

0°C~70°C TA

Packaging

Tray

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

144

HTS Code

8542.31.00.01

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3.3V

Terminal Pitch

0.65mm

Base Part Number

CEC1302

Supply Voltage-Max (Vsup)

3.465V

Supply Voltage-Min (Vsup)

3.135V

Interface

I2C, SPI, UART, USART

Oscillator Type

External

Speed

48 MHz

RAM Size

128K x 8

Voltage - Supply (Vcc/Vdd)

3.135V~3.465V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER

Core Processor

ARM® Cortex®-M4

Peripherals

DMA, KB, LED, POR, PWM, WDT, Crypto - AES, SHA, RSA, TRNG

Clock Frequency

48MHz

Program Memory Type

External Program Memory

Core Size

32-Bit

Connectivity

I2C, SPI, UART/USART

Bit Size

32

Has ADC

YES

DMA Channels

YES

PWM Channels

YES

DAC Channels

NO

Address Bus Width

32

Core Architecture

ARM

On Chip Program ROM Width

8

CPU Family

CORTEX-M4

Boundary Scan

YES

Low Power Mode

YES

External Data Bus Width

32

Format

FLOATING-POINT

Integrated Cache

NO

RAM (words)

8192

Number of Timers

6

ROM Programmability

MROM

On Chip Data RAM Width

32

Number of DMA Channels

12

Length

9mm

Height Seated (Max)

0.8mm

Width

9mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
